Create a template via API
This endpoint is used to create a template. A recommended way is to provide a list of roles with empty objects to get default values for various options corresponding to those roles, then update those roles by modifying them using create/update role API.

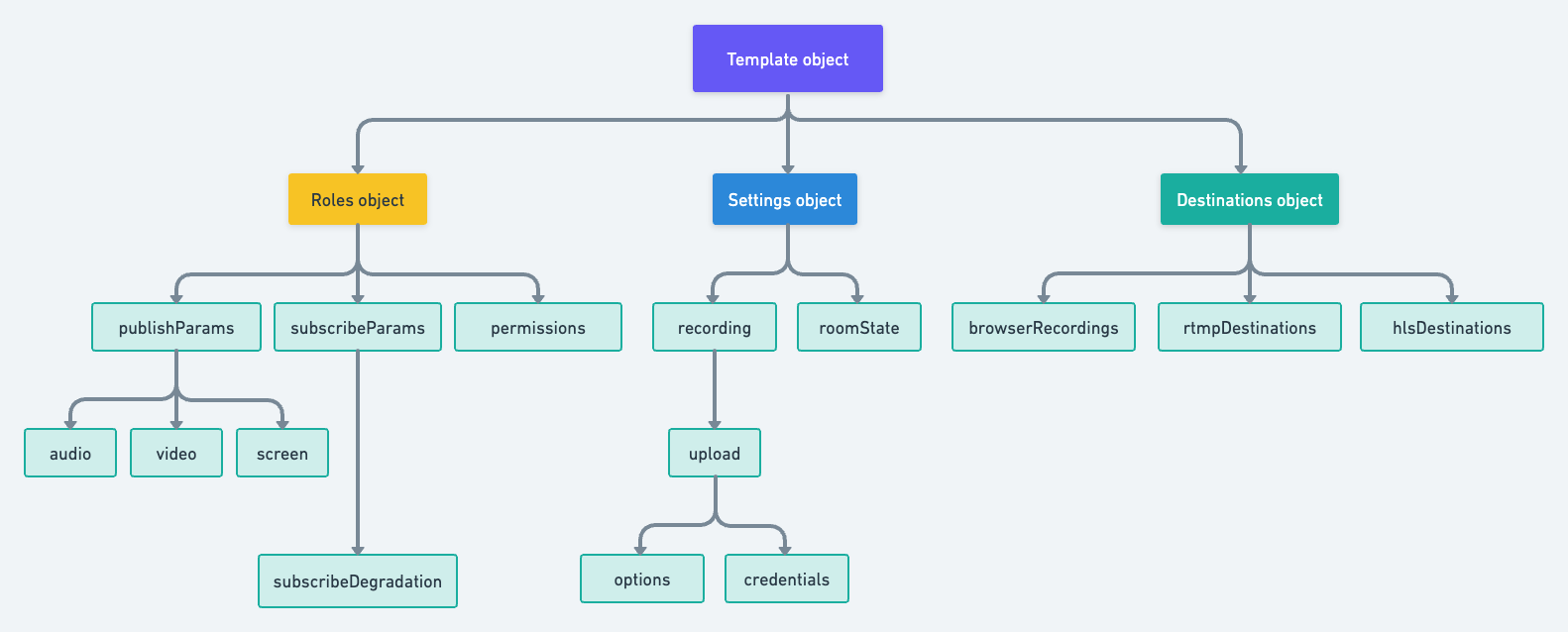

Understand sub-objects hierarchy
POSThttps://api.100ms.live/v2/templates
curl --location --request POST 'https://api.100ms.live/v2/templates' \ --header 'Authorization: Bearer <management_token>' \ --header 'Content-Type: application/json' \ --data-raw '{ "name": "new-template-{{$timestamp}}", "default": false, "roles": { "guest": { "name": "guest", "publishParams": { "allowed": [ "audio", "video", "screen" ], "audio": { "bitRate": 32, "codec": "opus" }, "video": { "bitRate": 300, "codec": "vp8", "frameRate": 30, "width": 480, "height": 360 }, "screen": { "codec": "vp8", "frameRate": 10, "width": 1920, "height": 1080 }, "videoSimulcastLayers": {}, "screenSimulcastLayers": {} }, "subscribeParams": { "subscribeToRoles": [ "host", "guest" ], "maxSubsBitRate": 3200, "subscribeDegradation": { "packetLossThreshold": 25, "degradeGracePeriodSeconds": 1, "recoverGracePeriodSeconds": 4 } }, "permissions": { "sendRoomState": false }, "priority": 1, "maxPeerCount": 0 }, "host": { "name": "host", "publishParams": { "allowed": [ "audio", "video", "screen" ], "audio": { "bitRate": 32, "codec": "opus" }, "video": { "bitRate": 300, "codec": "vp8", "frameRate": 30, "width": 480, "height": 360 }, "screen": { "codec": "vp8", "frameRate": 10, "width": 1920, "height": 1080 }, "videoSimulcastLayers": {}, "screenSimulcastLayers": {} }, "subscribeParams": { "subscribeToRoles": [ "guest", "host" ], "maxSubsBitRate": 3200, "subscribeDegradation": { "packetLossThreshold": 25, "degradeGracePeriodSeconds": 1, "recoverGracePeriodSeconds": 4 } }, "permissions": { "endRoom": true, "removeOthers": true, "mute": true, "unmute": true, "changeRole": true, "sendRoomState": false }, "priority": 1, "maxPeerCount": 0 } }, "settings": { "region": "in", "subscribeDegradation": {}, "recording": { "enabled": true, "upload": { "type": "s3", "location": "<Name of the AWS s3 bucket>", "prefix": "<Upload prefix path>", "options": { "region": "<region of the s3 bucket>" }, "credentials": { "key": "<access key ID for the AWS account/S3 bucket>", "secretKey": "<secret access key for the AWS account/S3 bucket>" } } }, "screenSimulcastLayers": {}, "videoSimulcastLayers": {}, "roomState": { "messageInterval": 5, "sendPeerList": false, "stopRoomStateOnJoin": true, "enabled": false } }, "destinations": { "browserRecordings": { "test": { "name": "test", "width": 1920, "height": 1080, "maxDuration": 1800, "thumbnails": { "width": 0, "height": 0 }, "presignDuration": 3600 } }, "rtmpDestinations": { "test": { "name": "test", "width": 1080, "height": 1920, "maxDuration": 1800, "rtmpUrls": [ "url", "ashdas", "ddsfsdf" ], "recordingEnabled": true } }, "hlsDestinations": { "test": { "name": "test", "maxDuration": 28800, "layers": [ { "width": 1080, "height": 720, "videoBitrate": 1100, "audioBitrate": 32 }, { "width": 720, "height": 720, "videoBitrate": 600 }, {} ], "playlistType": "event", "numPlaylistSegments": 12, "videoFrameRate": 25, "enableMetadataInsertion": true, "enableStaticUrl": true, "recording": { "hlsVod": true, "singleFilePerLayer": true, "layers": [ { "width": 720, "height": 1920, "videoBitrate": 2000, "audioBitrate": 64 } ], "thumbnails": { "enabled": true, "width": 720, "height": 1920, "offsets": [ 2 ], "fps": 60 }, "presignDuration": 604800 } } } } }'
RESPONSE
Status: 200 OK
{ "id": "6324661c4da877930beaecaa", "name": "new-template-1663329820", "customerId": "627cda54ff688c037a39291b", "roles": { "guest": { "name": "guest", "publishParams": { "allowed": ["audio", "video", "screen"], "audio": { "bitRate": 32, "codec": "opus" }, "video": { "bitRate": 300, "codec": "vp8", "frameRate": 30, "width": 480, "height": 360 }, "screen": { "codec": "vp8", "frameRate": 10, "width": 1920, "height": 1080 }, "videoSimulcastLayers": {}, "screenSimulcastLayers": {} }, "subscribeParams": { "subscribeToRoles": ["host", "guest"], "maxSubsBitRate": 3200, "subscribeDegradation": { "packetLossThreshold": 25, "degradeGracePeriodSeconds": 1, "recoverGracePeriodSeconds": 4 } }, "permissions": { "rtmpStreaming": true, "hlsStreaming": true, "browserRecording": true, "sendRoomState": false }, "priority": 1, "maxPeerCount": 0 }, "host": { "name": "host", "publishParams": { "allowed": ["audio", "video", "screen"], "audio": { "bitRate": 32, "codec": "opus" }, "video": { "bitRate": 300, "codec": "vp8", "frameRate": 30, "width": 480, "height": 360 }, "screen": { "codec": "vp8", "frameRate": 10, "width": 1920, "height": 1080 }, "videoSimulcastLayers": {}, "screenSimulcastLayers": {} }, "subscribeParams": { "subscribeToRoles": ["guest", "host"], "maxSubsBitRate": 3200, "subscribeDegradation": { "packetLossThreshold": 25, "degradeGracePeriodSeconds": 1, "recoverGracePeriodSeconds": 4 } }, "permissions": { "endRoom": true, "removeOthers": true, "mute": true, "unmute": true, "changeRole": true, "rtmpStreaming": true, "hlsStreaming": true, "browserRecording": true, "sendRoomState": false }, "priority": 1, "maxPeerCount": 0 } }, "settings": { "region": "in", "subscribeDegradation": {}, "recording": { "enabled": true, "upload": { "location": "<Name of the AWS s3 bucket>", "type": "s3", "prefix": "<Upload prefix path>", "credentials": { "key": "<access key ID for the AWS account/S3 bucket>", "secretKey": "<secret access key for the AWS account/S3 bucket>" }, "options": { "region": "<region of the s3 bucket>" } } }, "roomState": { "messageInterval": 5, "sendPeerList": false, "stopRoomStateOnJoin": true, "enabled": false }, "retry": {} }, "destinations": { "browserRecordings": { "test": { "name": "test", "width": 1920, "height": 1080, "maxDuration": 1800, "thumbnails": { "width": 0, "height": 0 }, "presignDuration": 3600 } }, "rtmpDestinations": { "test": { "name": "test", "width": 1080, "height": 1920, "maxDuration": 1800, "rtmpUrls": ["url", "ashdas", "ddsfsdf"], "recordingEnabled": true } }, "hlsDestinations": { "test": { "name": "test", "maxDuration": 28800, "layers": [ { "width": 1080, "height": 720, "videoBitrate": 1100, "audioBitrate": 32 }, { "width": 720, "height": 720, "videoBitrate": 600 }, {} ], "playlistType": "event", "numPlaylistSegments": 12, "videoFrameRate": 25, "enableMetadataInsertion": true, "enableStaticUrl": true, "recording": { "hlsVod": true, "singleFilePerLayer": true, "layers": [ { "width": 720, "height": 1920, "videoBitrate": 2000, "audioBitrate": 64 } ], "thumbnails": { "enabled": true, "width": 720, "height": 1920, "offsets": [2], "fps": 60 }, "presignDuration": 604800 } } } }, "createdAt": "2022-09-16T12:03:40.068Z", "updatedAt": "2022-09-16T12:03:40.068Z", "_id": "6324661c4da877930beaecaa", "customer": "627cda54ff688c037a39291b" }
Main arguments
| Name | Type | Description | Required |
|---|---|---|---|
| name | string | A unique identifier you can assign to 100ms templates. Accepted characters are a-z, A-Z, 0-9, and . - : _. If not provided, this is generated automatically. Notes: If create Template is called with an existing template name, then that template will be overwritten. | No |
| default | boolean | Whether this is default template for a customer. Default template for a customer is used when no template is provided in create room API. | No |
| roles | object | Map of {roleName:roleObject}. Some sane defaults are set for values that are not provided in the roles object. | No |
| settings | object | Global settings for this template. | No |
| destinations | object | Object of type destinations. This object contains information for enabling/configuring features like browserRecordings, rtmpDestinations, & hlsDestinations. | No |
roles object
| Name | Type | Description | Required |
|---|---|---|---|
| name | string | Alias for the role associated with a particular template. | No |
| publishParams | object | Publish parameters for this role. Object of type publishParams with the collection of objects such as allowed, audio, video, screen, etc | No |
| subscribeParams | object | Subscribe parameters for this role. Object of type subscribeParams with a mix of arguments and objects like subscribeToRoles, maxSubsBitRate, & subscribeDegradation | No |
| permissions | object | Permissions for this role. Object of type permission with collection of objects like browserRecordings, rtmpDestinations, & hlsDestinations. | No |
| priority | int | Priority of the role for subscribing/publishing. Priority will determine the order in which the roles will be degraded. A lower number represents a higher priority. | No |
publishParams object
| Name | Type | Description | Required |
|---|---|---|---|
| allowed | array | Allowed tracks. Subarray of [audio, video, screen]. | No |
| audio | object | Audio publish parameters. | No |
| video | object | Video publish parameters. | No |
| screen | object | Screenshare publish parameters. | No |
audio object
| Name | Type | Description | Default | Required |
|---|---|---|---|---|
| bitRate | int | Audio Max bitrate of audio track in kbps. Range: 16-128 | 32 | No |
| codec | string | Codec for the audio track. Options: [ opus] | opus | No |
video object
| Name | Type | Description | Default | Required |
|---|---|---|---|---|
| bitRate | int | Max bitrate of video track in kbps. Range: 30-2000 | 256 | No |
| codec | string | Codec for the video track. Options: [ vp8] | vp8 | No |
| frameRate | int | Max number of video frames per second. Range: 1-30 | 25 | No |
| height | int | Height of the video track. Range: 50-1080 | 180 | No |
| width | int | Width of the video track. Range: 50-1920 | 320 | No |
screen object
| Name | Type | Description | Default | Required |
|---|---|---|---|---|
| bitRate | int | Max bitrate of screen track in kbps. Range: >=500 ` | 1024 | No |
| codec | string | Codec for the screen track. Options: [ vp8] | vp8 | No |
| frameRate | int | Max number of screen frames per second Range: 1-30 | 10 | No |
| height | int | Height of the screen track. Range: 270-1080 | 720 | No |
| width | int | Width of the screen track. Range: 480-1920 | 1280 | No |
subscribeParams object
| Name | Type | Description | Required |
|---|---|---|---|
| maxSubsBitRate | int | Maximum bitrate (in kbps) that can subscribed. | No |
| subscribeToRoles | array | List of roles which can be subscribed to. | No |
| subscribeDegradation | object | Subscribe degradation parameters (adding this enables screen simulcast). | No |
subscribeDegradation object
| Name | Type | Description | Default | Required |
|---|---|---|---|---|
| packetLossThreshold | int | Threshold for packet loss. Range: 1-100 | 50 | No |
| degradeGracePeriodSeconds | int | Degrade grace period (in seconds). Range: 1-10 | 1 | No |
| recoverGracePeriodSeconds | int | Recover grace period (in seconds). Range: 1-10 | 4 | No |
permissions object
| Name | Type | Description | Required | Default |
|---|---|---|---|---|
| endRoom | boolean | Permission to end room for all. | No | false |
| removeOthers | boolean | Permission to remove others from the room. | No | false |
| mute | boolean | Permission to request others to mute them. | No | false |
| unmute | boolean | Permission to request others to unmute them. | No | false |
| changeRole | boolean | Permission to request others to change their role. | No | false |
| sendRoomState | boolean | Permission to receive room state like peer-count and peer-list | No | false |
| browserRecording | boolean | Permission to start/stop browser (beam) recording. This is also required to start/stop RTMP + browser recording in conjunction with rtmpStreaming permissions. | No | true |
| rtmpStreaming | boolean | Permission to start/stop RTMP streaming. This is also required to start/stop RTMP + browser recording in conjunction with browserRecording permissions. | No | true |
| hlsStreaming | boolean | Permission to start/stop HLS streaming (with or without recording). This is also required to - pause/unpause HLS recording or insert metadata in HLS stream. | No | true |
settings object
| Name | Type | Description | Required |
|---|---|---|---|
| region | string | Region in which the room will be hosted by default. Possible values could be in, us, eu or auto (automatic region selection). | No |
| recording | object | Object of type recording. This object contains information for enabling recording/setting storage location for recordings. | No |
| roomState | object | Object of type roomState. This object will help you to define strategy of sending state updates to client SDKs. Also, enables you to build a "preview" screen which shows the state of the room before joining by providing the list of peers | No |
recording object
| Name | Type | Description | Required |
|---|---|---|---|
| enabled | boolean | Enable the SFU recording for its rooms. Disabled by default. | No |
| upload | object | Object of type upload. This object contains information on recordings storage location. If you want to store recording with 100ms, and not use your own s3, don't add this to the object | No |
upload object
| Name | Type | Description | Required |
|---|---|---|---|
| type | string | Upload destination type. Currently, only s3 is supported. | Yes |
| location | string | Name of the AWS s3 bucket in which you want to store all recordings | Yes |
| prefix | string | Upload prefix path | Yes |
| options | object | Additional configurations of type Options to be used for uploading | No |
| credentials | object | Object of type credentials. This is used to share AWS credentials to access the s3 bucket specified. | No |
options object
| Name | Type | Description | Required |
|---|---|---|---|
| region | string | Region of the AWS account hosting the s3 bucket. If not provided it is assumed to be ap-south-1 | No |
credentials object
| Name | Type | Description | Required |
|---|---|---|---|
| key | string | access key ID for the AWS account hosting the s3 bucket for storing recordings | Yes |
| secretKey | string | secret access key for the AWS account hosting the s3 bucket for storing recordings | Yes |
roomState object
| Name | Type | Description | Required |
|---|---|---|---|
| messageInterval | int | Room-state data will be sent over a regular interval of these many seconds. Consequently, the room state displayed on the preview screen will refresh accordingly. This value must be a multiple of 5, between 5 and 3600 seconds, both inclusive. | No |
| sendPeerList | boolean | Enabling this will send peer-list info of the room. If disabled, only the peer count is sent. | No |
| enabled | boolean | This is the list of all the roles which will get the room-state data. You can also individually toggle these settings in the Roles tab under the Permissions section. | No |
destinations object
| Name | Type | Description | Required |
|---|---|---|---|
| browserRecordings | object | Object of type browserRecordings. This can be used to record your sessions to a file, for subsequent access. | No |
| rtmpDestinations | object | Object of type rtmpDestinations. This can be used to live stream your video conferencing apps to platforms like YouTube, Twitch, Facebook, MUX, etc. | No |
| hlsDestinations | object | Object of type hlsDestinations. This can be used to configure arguments for your HLS live streaming | No |
browserRecordings object
| Name | Type | Description | Required |
|---|---|---|---|
| name | string | The name you can assign to identify the browser recording | No |
| width | int | Indicates the width of the screen to be recorded in pixels. For example, 1280 pixels | No |
| height | int | Indicates the height of the screen to be recorded in pixels. For example, 720 pixels | No |
| maxDuration | int | Sets the maximum duration, in seconds, of the recording. For example, 1800 seconds(30 mins) | No |
| thumbnails | object | Object of type thumbnails. This can be used to configure thumbnail's dimension | No |
| presignDuration | int | Indicates the expiry of the pre-signed URLs—the duration for which the pre-signed URL should be signed. | No |
rtmpDestinations object
| Name | Type | Description | Required |
|---|---|---|---|
| name | string | The name you can assign to identify the RTMP destination | No |
| width | int | Indicates the width of the screen to be recorded in pixels. For example, 1280 pixels | No |
| height | int | Indicates the height of the screen to be recorded in pixels. For example, 720 pixels | No |
| maxDuration | int | Sets the maximum duration, in seconds, of the recording. For example, 1800 seconds(30 mins) | No |
| rtmpUrls | object | Object of type rtmpUrls. This can be used to configure the RTMP URLs(max 3) you wish to broadcast the stream to. | No |
| recordingEnabled | boolean | If recording is required this can be set as true. This value has no effect on streaming. | No |
hlsDestinations object
| Name | Type | Description | Required |
|---|---|---|---|
| name | string | The name you can assign to identify the HLS destination | No |
| maxDuration | int | Sets the maximum duration, in seconds, of the recording. For example, 1800 seconds(30 mins) | No |
| layers | object | Object of type layers. This can be used to configure the various dimensions to be supported for HLS streaming. | No |
| playlistType | string | Indicates the type of playlist. Can be of type event or live. | No |
| numPlaylistSegments | int | Indicates the number of media segments in the playlist. Applicable only for live playlistType. Min/max/default = 3/12/5. | No |
| videoFrameRate | int | Set this argument to configure the frames per second (or FPS) for your stream. For example, 25 | No |
| enableMetadataInsertion | boolean | Set this to true to enable metadata insertion along with the stream. | No |
| enableStaticUrl | boolean | If recording is required this can be set as true. This value has no effect on streaming. | No |
| recording | object | Object of type recording. This can be used to enable HLS recording and configure the layers, thumbnails, etc. | No |
HLS - recording object
| Name | Type | Description | Required |
|---|---|---|---|
| hlsVod | boolean | The name you can assign to identify the HLS destination | No |
| singleFilePerLayer | boolean | Sets the maximum duration, in seconds, of the recording. For example, 1800 seconds(30 mins) | No |
| layers | object | Object of type layers. This can be used to configure the various dimensions to be supported for HLS recording. | No |
| thumbnails | object | Object of type thumbnails. This can be used to configure thumbnail's dimension | No |
| presignDuration | int | Indicates the expiry of the pre-signed URLs—the duration for which the pre-signed URL should be signed. | No |
