Interactive Live Streaming via dashboard

Overview

Live video interactions can span various levels of interactivity. For example, in a virtual event, some participants can be on stage talking to each other, whereas participants in the audience can be listening to them.

At 100ms, we think of this as the 3 levels of interactivity. 100ms enables you to build live video use-cases by mixing and matching these 3 levels to get to your ideal solution.

• Level 1: Full duplex audio/video in real-time

  Level 1 participants publish their audio/video, and interact with others in sub-second latency. This is real-time video conferencing, similar to Zoom or Google Meet.

• Level 2: Webinar-style audience in real-time

  Level 2 participants consume audio/video from level 1 participants with sub-second latency, without publishing their own audio/video. Level 2 participants can engage with level 1 through messaging (chat, emojis, custom events). This is similar to a Zoom webinar.

  Levels 1 and 2 are enabled using WebRTC.

• Level 3: Live stream audience consuming in near real-time

  Level 3 participants consume a composite live stream in near real-time (<10 secs of latency) without publishing their audio/video. They can interact with other participants via messaging. This is similar to viewers on Twitch or YouTube Live, and is enabled via 100ms Interactive Live Streaming.

  Live streaming uses HLS to achieve near real-time latency at scale.

The roles primitive can be used to define capabilities of a participant and associate them to an interaction level. A participant can move between levels using a single API call to change roles.

Try Interactive Live Streaming

Use our Live Streaming Starter Kit to try out the experience before you write a line of code.

Step 1: Create a new app

1. Make sure that you have an account with 100ms and can access the 100ms dashboard

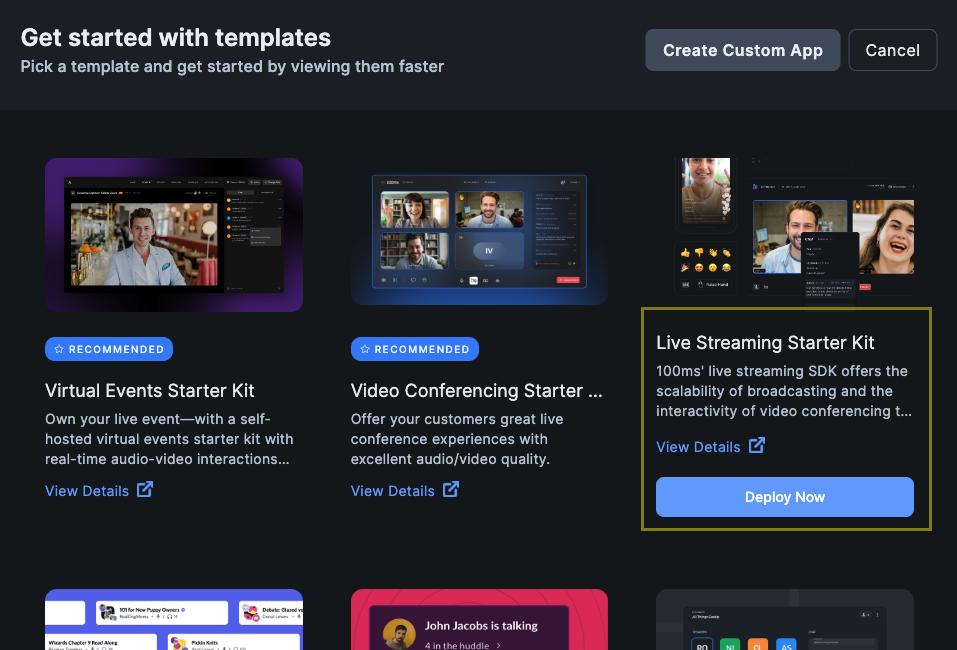

2. On the dashboard, create a new app using the Live Streaming Starter Kit
3. Specify a subdomain and region to deploy the app

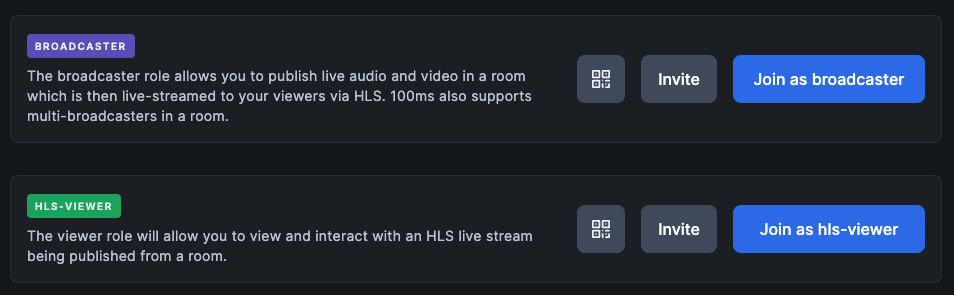

Step 2: Understand roles

This starter kit configures your new app with two roles:

• broadcaster: This role represents a streamer who publishes their audio/video. There can be multiple peers who join as broadcasters
• hls-viewer: This role represents a circle 3 audience, who subscribes to the composite live stream and can interact using messaging

Step 3: Go live

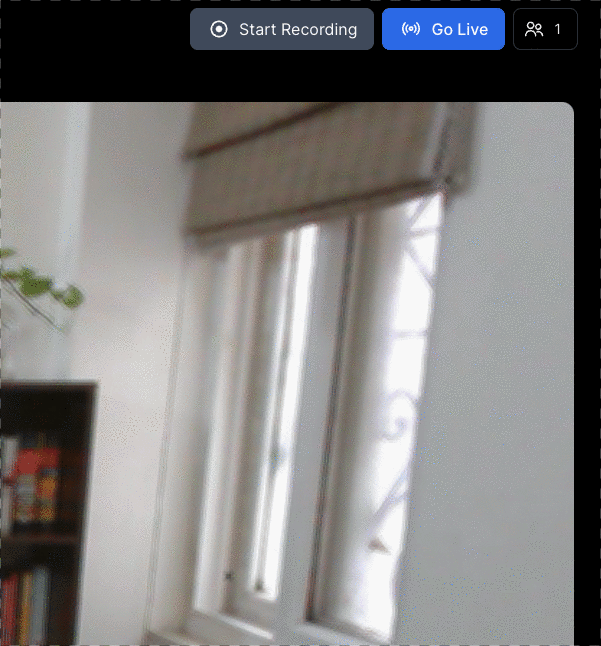

1. To go live for the first time, join the room as a broadcaster and start the live stream
2. Once the stream has started, join the room as an hls-viewer — you should be able to see the ongoing live stream
3. Use chat messages to interact between the viewer and the broadcaster

Step 4: Customize the stream

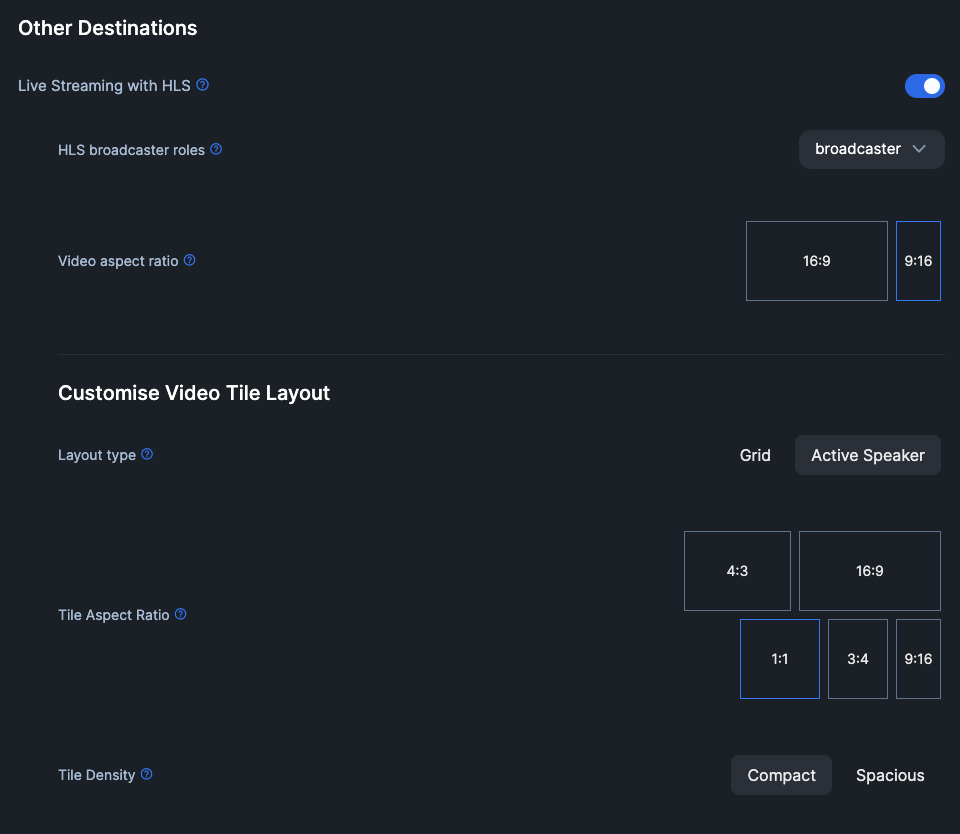

By default, the live stream is composed in landscape mode for desktop viewers (with an aspect ratio of 16:9). You can customise the live stream for viewers on mobile or to support multiple broadcaster tiles.

1. On the 100ms dashboard, click the gear icon on your app to open configuration settings
2. Go to "destinations" and scroll down to find live stream (HLS) configuration
3. Update the configuration based on your needs:
   • If your viewers are on mobile, change the video aspect ratio to 9:16
   • If you have multiple broadcasters joining in, choose grid or active speaker based on your needs
   • In case of grid layout, choose the tile size that fits your use-case. For example, a stream with 2 streamers looks better with 1:1 tiles.

Integrate in your app

To integrate 100ms Interactive Live Streaming in your app, follow these steps:

1. Enable live streaming destination
2. Integrate the 100ms SDK in your app

Enable destination

If your app is based on the Live Streaming Starter Kit (as shown above), the live streaming destination is enabled out-of-the-box.

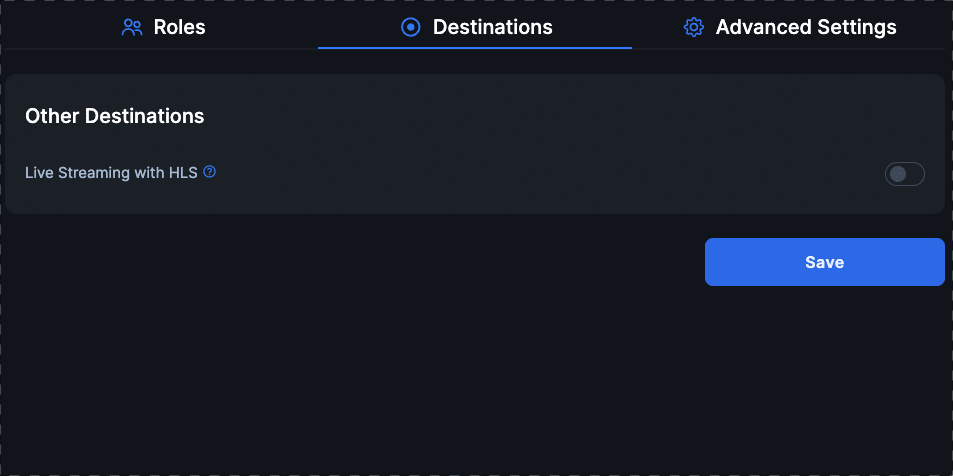

For custom apps, you can enable the live streaming destination manually:

1. Open configuration for your existing app using the 100ms dashboard
2. In the "destinations" tab, enable "Live Streaming with HLS"
3. Ensure that you have roles for the broadcaster (who can publish their audio/video) and the viewer (who cannot publish audio/video)

SDK integration
